The Anatomy of a 3D Printer (AKA What's Actually Going On in That Magic Box)

Ever looked at a 3D Print and thought.. how is this thing literally creating objects out of thin air?

It feels like magic ✨－but it's actually a team of of precise, hardworking parts all doing their job at the exact right moment. And when one of them decides to act up? Yeah.. that's when your clean print turns into a spaghetti situation real quick.

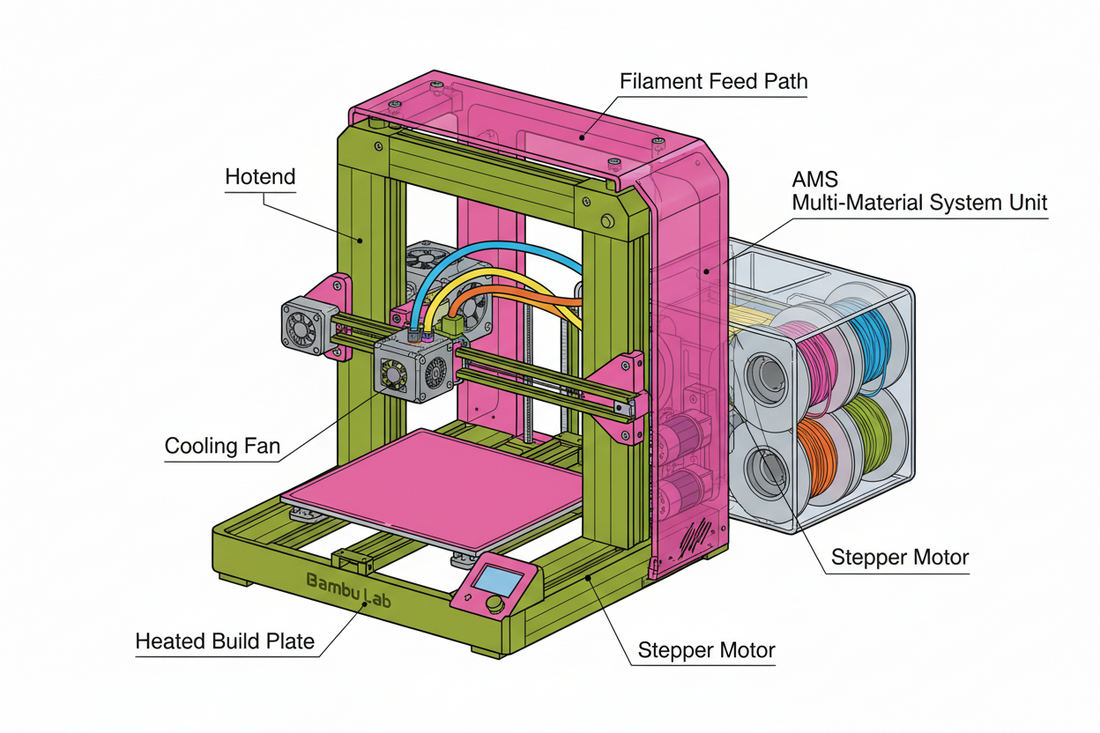

Let's break down the anatomy so you actually get it 👇🏼



🧩 THE FRAME－The Skeleton

Think of the frame as the skeleton of your 3D printer. It's what holds everything together and keeps all the moving parts aligned while your print is in progress. Most modern printers use aluminium frames because they're strong, lightweight, and don't flex easily under movement.

And trust－flex is the enemy here. If your frame isn't rigid, even tiny vibrations can mess with your print quality. You'll start seeing weird ripples, uneven layers, or slight shifts that ruin an otherwise perfect design. A solid frame doesn't get the spotlight, but it's the reason your prints look clean instead of chaotic.

💡 Stable frame = clean prints. Wobbly frame = instant regret.



🔥 THE HOTEND－The Melter

This is where things get serious. The hot end is responsible for melting your filament and turning it into something that can actually be shaped. It heats up to high temperatures and pushes melted material out through a tiny nozzle, layer by layer.

Inside the hot end, you've got a few key players working together －the heater block generating heat, the thermistor controlling temperature, and the nozzle shaping the flow. If even one of these isn't dialled in properly, you'll notice it immediately. Think blobs, stringing, or prints that just don't stick right.

💡Too hot? You get goo. Too cold? you get nothing. Balance is everything.



🧵 THE EXTRUDER－The Feeder

If the hot end is the melter, the extruder is the one feeding it. This part grips your filament and pushes it through the system at a controlled speed, making sure everything flows smoothly and consistently.

It also handles retraction, which is basically pulling filament back slightly to prevent those annoying stringy bits between prints. Whether you're using a direct drive or Bowden setup, your extruder has a huge impact on how clean and strong your prints come out. When it's off? You'll see gaps, blobs, or weak layers instantly.

💡 Bad extrusion = weak prints, messy details, and frustration



 🛏️ THE BUILD PLATE－The Stage

This is where your print comes to life. The build plate (or print bed) is the surface your object sticks to while it's being created layer by layer. Sounds simple － but it's actually one of the most important parts of the whole process.

The first layer is everything. If your print doesn't stick properly at the beginning. It's game over before you even get started. Heated beds help with adhesion and reduce warping, while different surfaces like glass or textured plates can change how your print sticks and releases.

💡 Nail the first layer, and you're already winning.



⚙️  THE STEPPER MOTORS－The Movers

These are the muscles behind your printer. Stepper motors control every movement －left, right, forward, backward, and up. Every tiny motion is calculated and executed with precision, which is what allows your printer to build detailed objects layer by layer.

When your motors are working perfectly, everything looks smooth and clean. But when something's off? You'll start seeing layer shifts, misalignment, or prints that look slightly "off" in ways you can't always explain. That's your movement system telling you something's not right.

💡 Precision movement = sharp, accurate prints.



🧠 THE CONTROL BOARD－The Brain

This is the command centre of your 3D printer. The control board takes your digital file (G-Code) and tells every single component exactly what to do －where to move, how fast to go, and when to heat up or cool down.

It's basically running a perfectly timed operation behind the scenes. You don't see it working, but everything depends on it. A better control board can even make your printer quieter and smoother, which is a small upgrade that makes big difference over time.

💡 No brain = no print. Simple as that.



⚡️ THE POWER SUPPLY－The Heartbeat

The power supply keeps everything alive. It converts electricity from your wall into the energy your printer needs to function, powering the motors, heating elements, and control board all at once.

If your power supply is unstable, you'll notice temperature fluctuations, failed prints, or random shutdowns. It's not the most exciting part of your printer, but without it, nothing works－and when it's bad, everything feels inconsistent.

💡 Stable power = stable prints



🌀 THE COOLING FANS－The Chill Crew

Cooling might not sound important, but it's actually what helps your print hold its shape as it's being built. Without proper cooling, your layers can droop, sag, or lose detail before they fully set.

There are usually two types of fans: one to keep the hot end from overheating in the wrong places, and another to cool the printed layers as they come out. Getting the balance right is key －too much cooling can cause cracking, too little can cause melting.

💡 Good cooling = crisp details and clean edges.



🧶 THE FILAMENT－The Raw Material

This is your printer's "ink" － the material that actually becomes your final product. Filament comes in different types, each with its own strength, flexibility, and finish.

PLA is the go-to for beginners because it's easy and reliable, while materials like PETG and ABS give you more durability and strength. The filament you choose affects not just how your print looks, but how it performs in real life.

💡 Right filament = better results, every time.



🎯 Final Thoughts

A 3D printer isn't just one machine －it's a full system of parts working together in sync. When everything is dialled in, it feels effortless, When one thing is off.. you'll know immediately.

But once you understand the anatomy? That's when things click. You stop guessing, start fixing, and your prints go from "meh' to sellable.



🚀Abitzo Tip

Learn your machine like it's your business partner －because it is.

Better prints ⇢ Better products ⇢ Better money.
